                Home>oubao products>Magnetic Core Drill

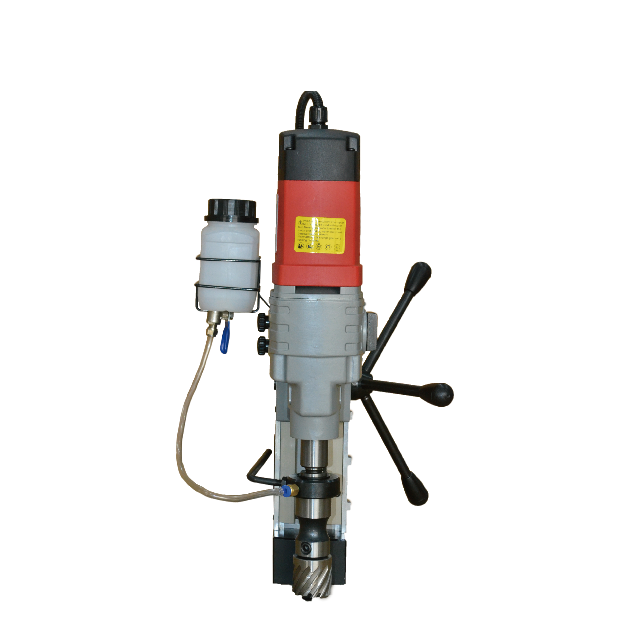

                Magnetic Core Drill



                    Double dovetail groove, long stroke, small size

All die-cast magnesium alloy frame in light weight

Built-in cooling system, small size

Strong drilling capacity and high efficiency













                TECHNICAL PARAMETER
















				Core drill dia(mm)


				Rated Voltage(v)


				Rated Frequency(Hz)


				Rated Input Power(w)


				Max attraction(N)



				No-load Speed(rpm)


				Cutting depth(mm)



				Stroke(mm)



				Net/Gross Weight(kgs)


				Packing Weight(cm)






				KGF-435


				35



				110/220~


				50-60


				1580



				14000



				920


				35



				120



				12/15


				51*18*38






				KGF-545


				45



				110/220~


				50-60


				1700


				15000



				760


				35



				130



				13/16


				51*18*38
