                Home>oubao products>Magnetic Core Drill

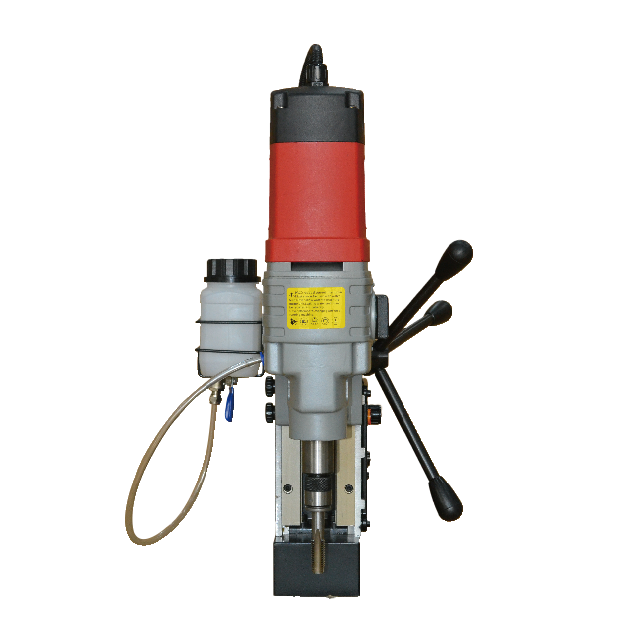

                Magnetic Core Drill



                    Hosts gearbox fixed with high accuracy

All die-cast magnesium alloy frame in light weight

Strong drilling capacity and high efficiency

High magnet force













                TECHNICAL PARAMETER
















				Core drill dia(mm)


				Twist drill dia(mm)



				Tapping drill dia(mm)



				Rated Voltage(v)


				Rated Frequency(Hz)


				Rated Input Power(w)


				Max attraction(N)



				No-load Speed(rpm)


				Cutting depth(mm)



				Morse taper



				Stroke(mm)



				Net/Gross Weight(kgs)


				Packing Weight(cm)






				OB-300/2RLO


				35



				16



				M14



				110/220~


				50-60


				1520



				14800



				100-250/180-450


				30



				MT2



				220



				14/17


				58*18*38






				OB-400/2RLO


				45



				19


				M16



				110/220~


				50-60


				1650


				15600



				90-225/160-405


				35



				MT2



				230



				15/18


				58*18*38
