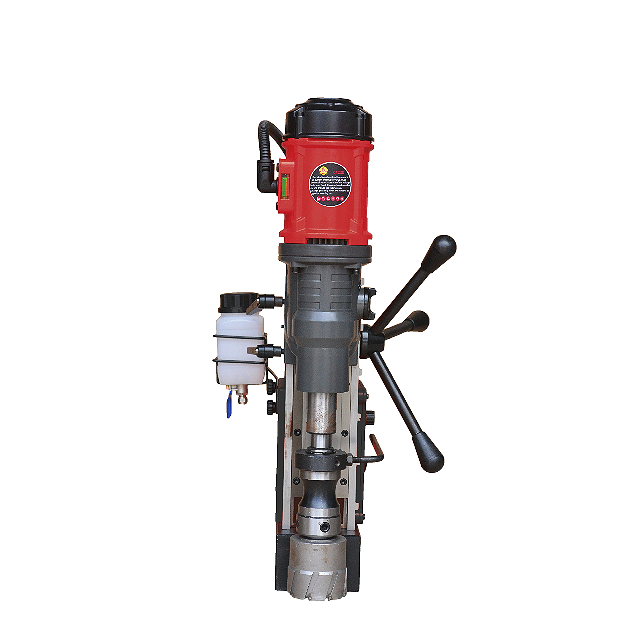

                Magnetic Core Drill



                    Double dovetail groove, long stroke, small size

All die-cast magnesium alloy frame in light weight

Liquid oil

High magnet force













                TECHNICAL PARAMETER
















				Core drill dia(mm)


				Twist drill dia(mm)



				Tapping drill dia(mm)



				Rated Voltage(v)


				Rated Frequency(Hz)


				Rated Input Power(w)


				Max attraction(N)



				No-load Speed(rpm)


				Cutting depth(mm)



				Morse taper



				Stroke(mm)



				Net/Gross Weight(kgs)


				Packing Weight(cm)






				OB-1000A


				100



				26


				M24



				110/220~


				50-60


				2380


				14800



				100-125/290/600


				40


				MT3



				220



				28/32


				65*20*40






				OB-1200A


				120


				28


				M26



				110/220~


				50-60


				2480


				15600



				100-135/300/690


				50


				MT3



				220



				29/33


				65*20*40
